the AKDesign
AKUSB-1 Audio Receiver

General description

The AKUSB module is an audiophile grade USB interface that supports all common sample rates for PCM and DSD up to 12.288MHz. It encodes all audio data received from the USB bus into a standard I2S format that can interface directly with most DAC chips or AKDesign's own converter modules.

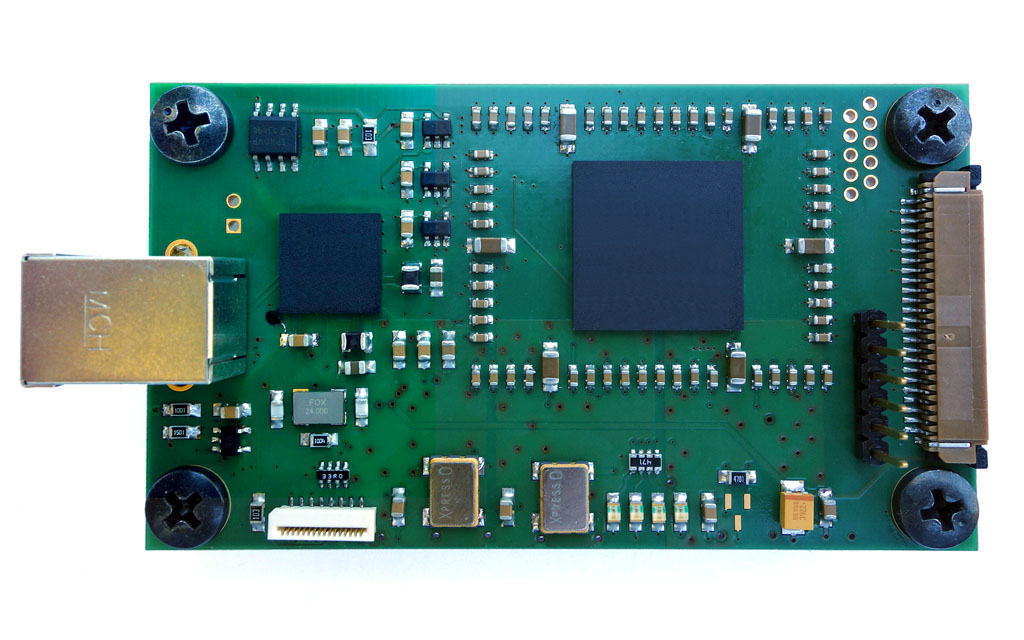

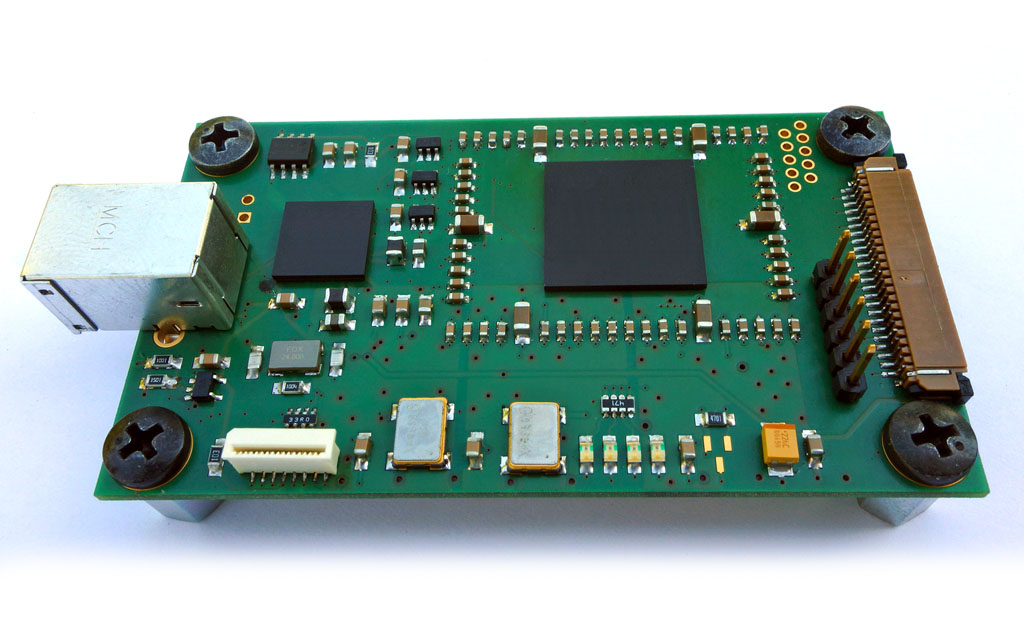

Photos

Features

  • Support for all PCM sample rates in multiples of 44.1kHz and 48kHz up to 384kHz
  • Support for DSD1X, DSD2X and DSD4X
  • Support for DoP (DSD1X and DSD2X only)
  • I2S ouput
  • Decodes DoP before encoding signals for I2S output
  • Supports internal and external master clock operation
  • On-board high quality clock generators for 44.1kHz and 48kHz families of sample rates
  • No driver required for Mac and Linux platforms
  • Windows driver included
